2 × UHD or 8 × HD channels.
Audio delay.
Supports zero-latency preview during recording and playback.
Supports encoding/decoding of UHD (XAVC 300, XAVC-L GOP 200, ProRes, DNxHR, H.265) and HD (XAVC 100, ProRes, DNxHD, H.265, XDCAM HD) formats.
Supports PTP and multi machine sync-record via time code.
Compliant with ST 2110-10/20/21/30/40 and ST 2022-7 standards.
Supports video formats: HD 1080 50i/50p/59.94i/60i/60p and UHD 2160 50p/59.94p/60p.
Supports PTP and NMOS IS-04/05 protocols.
Web-based management with real-time monitoring of CPU, memory, storage, and network status.
x86 architecture, embedded OS, 24/7 operation.
Supports software-defined functionality (SDF).
Supports 2.5GbE LAN/WIFI7 NAS transfer and network control, plus USB4 external storage.
Hardware Configuration

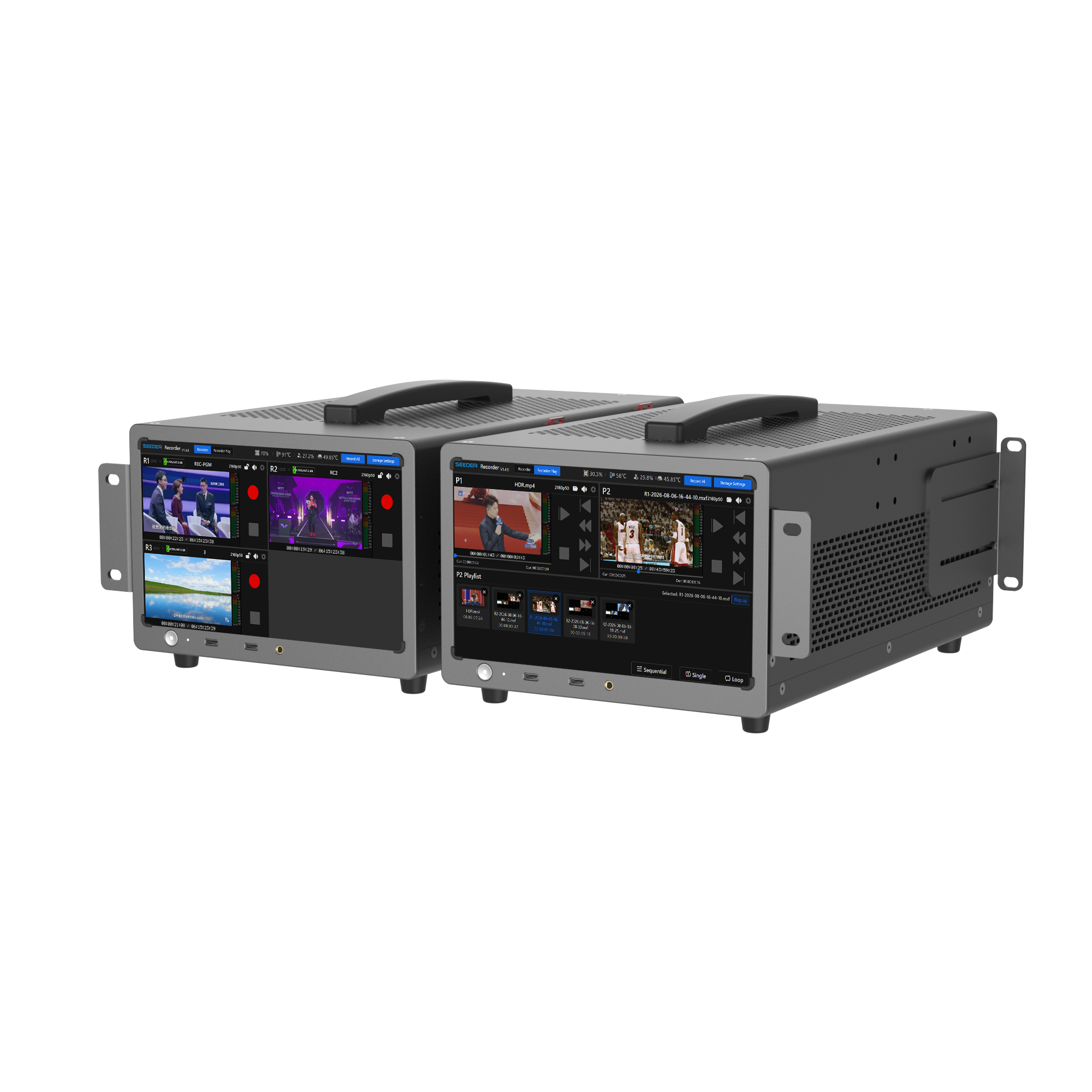

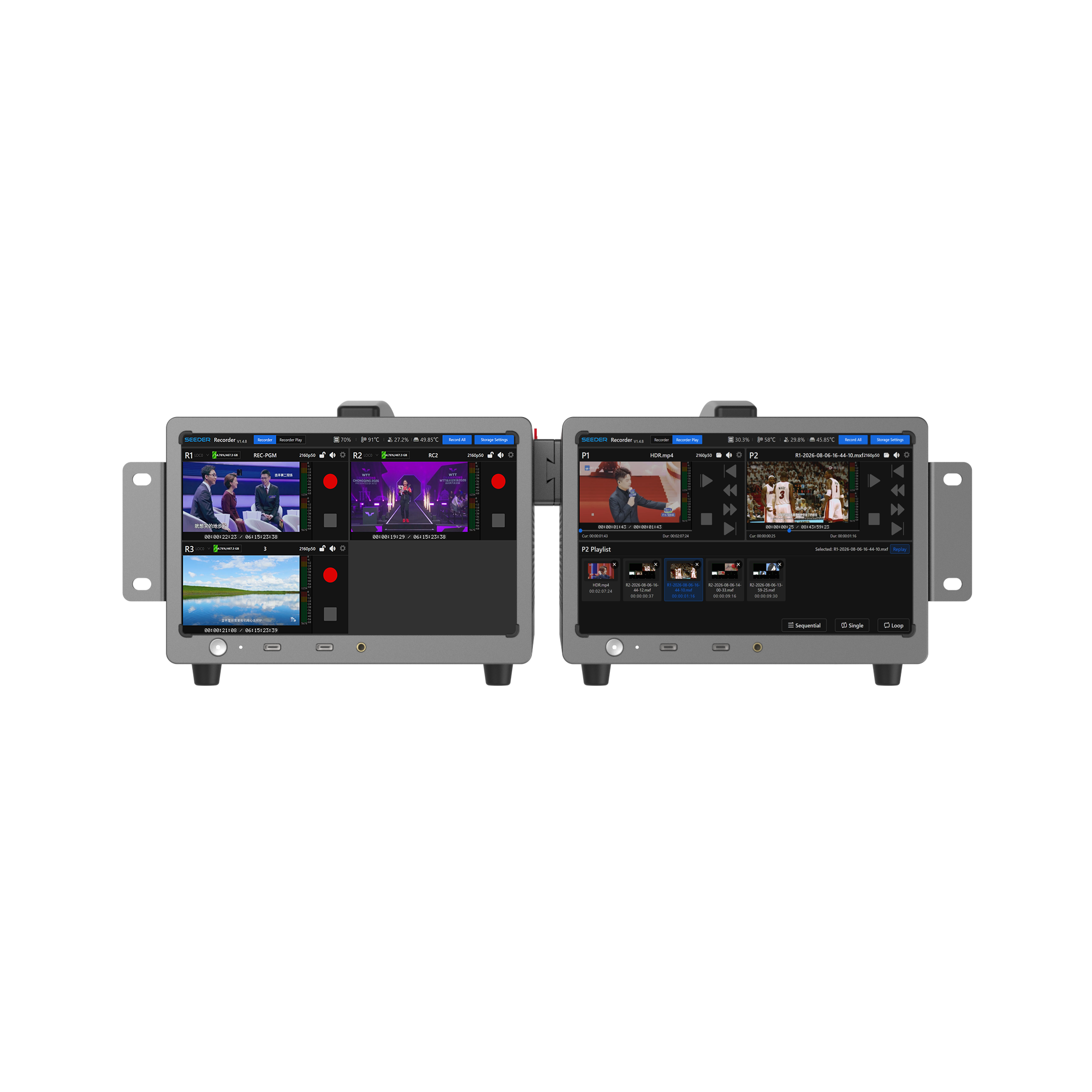

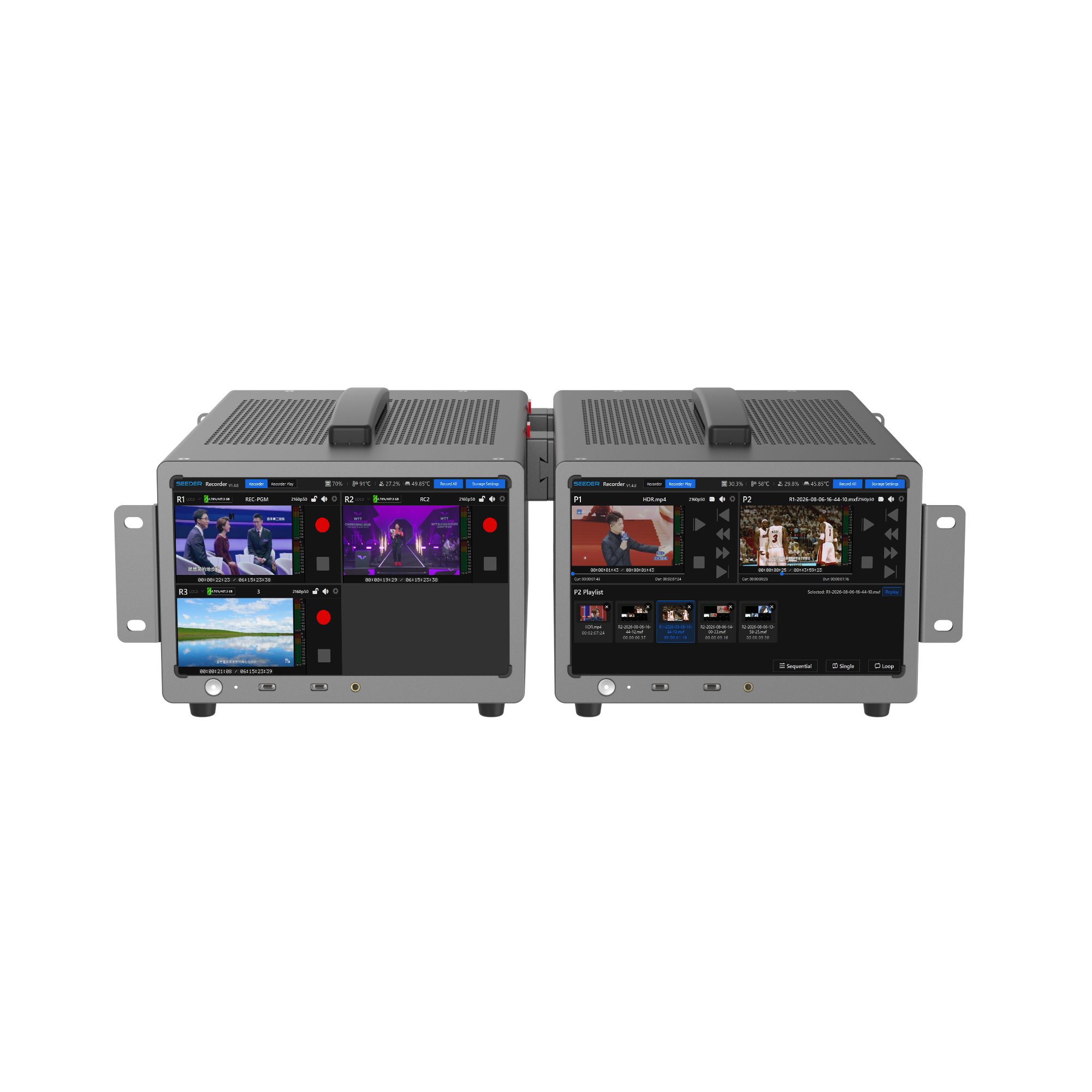

4U half-rack with 8.4" 1920×1200, 500-nit touchscreen
1 × M.2 4TB SSD
1 × USB-C (40Gb)
1 × 100Gb data port
1 × 2.5Gb management port
500W power supply
| Basic Functions | |
| System Architecture | X86 architecture, embedded OS |
| Function Expansion | Elastic computing expansion; software-defined functions |
| Record Channels | Up to 2× UHD or 8× HD simultaneous |
| Playback Channels | 2× in 4K mode; 8× in HD mode |
| UHD Codec | XAVC 300, XAVC-L GOP 200, ProRes, DNxHR, H.265, etc. |
| HD Codec | XAVC 100, ProRes, DNxHD, H.265, XDCAM HD, etc. |
| Preview | Zero-latency preview during record/playback |
| Multi-channel Record | Main/backup sync + PTP timecode alignment |
| Audio Delay | Audio delay adjustment for A/V alignment |
| Standards | ST2110-10/20/21/30/40, ST2022-7 |
| NMOS | Supports NMOS IS-04/05 for stream configuration and control |
| LSM Management | Quick setup of I/O sources, PTP, and stream monitoring |
| PTP Sync | 1588V2, 2059-2, ST2110-10 |
| HD Formats | 1080 50i/50P/59.94i/60i/60P |
| UHD Formats | 2160 50P/60P/59.94P |
| WEB Management | Real-time CPU, memory, and NIC monitoring |
| Audio Delay | Supports input/output delay |
| Frame Sync | SDI input frame sync |
| Basic Specifications | |
| Data NIC | 100Gb QSFP28 × 1 |
| Mgmt NIC | 2.5Gb RJ45 × 1 |
| External Drive | USB4 external data drive support |
| External NAS | Supports NAS over network |
| Server Chassis | 4U half-rack with 8.4" 1920×1200, 500-nit touchscreen |
| Media Drive | 4TB M.2 |
| Power | 100–120V / 200–240V 50/60Hz, 500W redundant PSU |
| Storage Temp | –20~60°C |
| Operating Temp | –10~40°C |
| Stability | 24/7 operation |
| Certification | NRTA CMA & CNAS reports |
